    Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75

    Ask Lasest Price
    Brand Name : APOLLO
    Certification : CE/SGS
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets per month
    Price : Negotiable
    Delivery Time : 30 working days
    Model Number : ABLB75
    • Product Details
    • Company Profile

    Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75

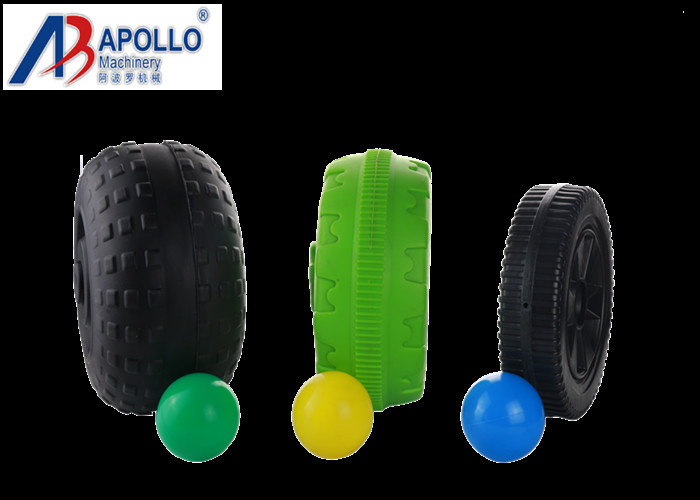

    ABLB75 full automatic blow molding machine is specialy design for the production of various plastic children toys in all shapes and widely materials.Mechanical-double-arm clamping system ensures mould being tightly colsed under great pressure and high temperature.
    Equipment with silencer and oil system to reduce the noise and friction.
    Electricity saved,energy saved and speed more faster.
    The max.size for mold:400x450x300(m
    For more information about the machine,please don't hesitate to contact us.

    Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75Automatic Oil Bottle Plastic Extrusion PE Blow Molding Machine ABLB75

    Related technical parameter(ABLB75)

    Max. Product volume8 litersDry cycle800pc/h
    Screw diameter75mmScrew L/D ratio24 L/D
    Screw drive power22 KWScrew heating capacity5-6 KW
    No.of heating zone4 zonesOutput of HDPE100 KG/H
    Oil pump drive power11 KWClamping force78 KN
    Max.size of mold400X450mmMold stroke188-600mm
    Max.die diameter180mmBlow pressure0.6mpa
    Air volume0.7 M/MINCooling water pressure0.3mpa
    Water consumption60 L/MIN

    PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
    One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
    The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
    Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
