Brand Name : | APOLLO |
Certification : | CE/SGS |
Payment Terms : | L/C, T/T |
Supply Ability : | 20 sets per month |
Price : | Negotiable |
Delivery Time : | 30 working days |
Automatic blow molding machine 5ml-2L Automatic bottle blow moulding machine ABLB55
ABLB55 is designed according to CE standard.Adding a safe door and
infrared signal lamp to avoid the the happen of accident. This
machine looks neat and nice.And it is widely used to produce kinds

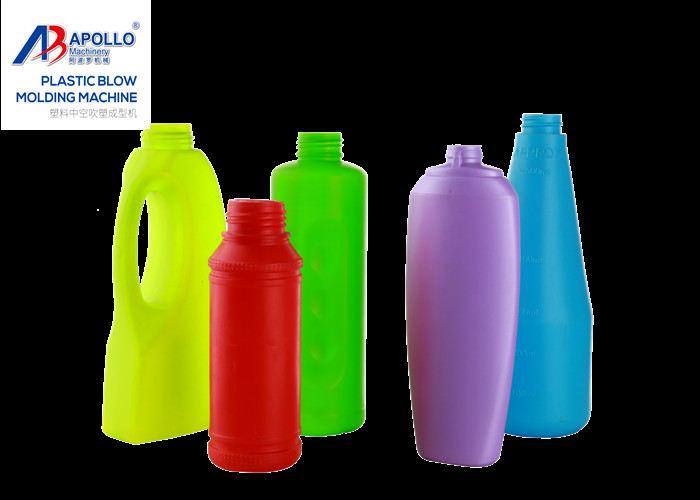

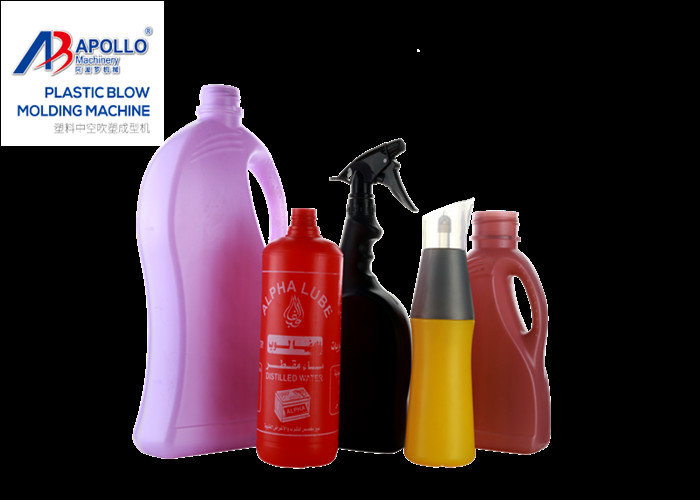

of cosmetic bottles,medical bottles,milk bottles,shampoo bottles
and so on.
For more info.,please contact us.
Related technical parameter:: (ABLB55)
Max. Product volume | 2 liters | Dry cycle | 950X2pc/h |
Screw diameter | 55mm | Screw L/D ratio | 24 L/D |
Screw drive power | 15 KW | Screw heating capacity | 5 KW |
No.of heating zone | 3 zones | Output of HDPE | 60 KG/H |
Oil pump drive power | 5.5 KW | Clamping force | 32KN |
Max.size of mold | 250X320mm | Mold stroke | 80-350mm |
Max.die diameter | 80mm | Blow pressure | 0.6mpa |
Air volume | 0.6 M³/MIN | Cooling water pressure | 0.3mpa |
Water consumption | 60 L/MIN |
PLC adds the man-machine interface, the touching type is operated,
it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One,
energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head
of many patterns, remove and make and converge the line completely,
meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre
locks the mould, balance the strength of receiving,move rapidly,
put it in place gentlely.
![]() |
