    PP LDPE Plastic Blowing Molding Machine 415V HDPE Bottle

    Ask Lasest Price
    Brand Name : APOLLO
    Supply Ability : 500 Piece/Pieces per Year plastic bottle blow molding moulding machine plastic machine
    Price : $45,000.00 - $61,000.00/sets
    • Product Details
    • Company Profile

    PP LDPE Plastic Blowing Molding Machine 415V HDPE Bottle

    plastic molding machine PP LDPE HDPE plastic bottle blowing machine


    Product Description

    ABLB90 auto plastic can making machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 20L.

    The features of this machine:

    (1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 20L.

    (2)Single station single die head design,very easy to operate and maintenance.

    (3)Most components of the blow moulding machine are from famous world brand.

    (4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.

    (5)Multiple screw available for double layer or tranparent liquid lever line.

    (6)Auto deflashing device available,can remove the extra parts of bottles.

    (7)Auto lubricant system controlled by PLC.

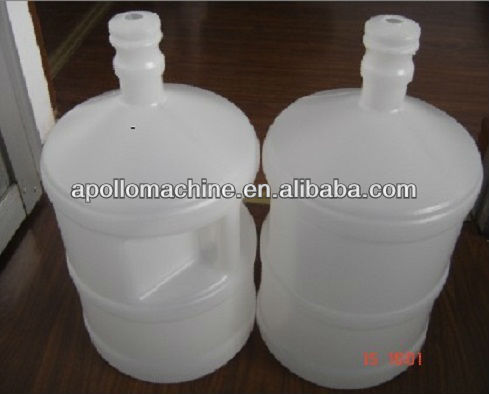

    Suitable products making:

    PP LDPE Plastic Blowing Molding Machine 415V HDPE BottlePP LDPE Plastic Blowing Molding Machine 415V HDPE BottlePP LDPE Plastic Blowing Molding Machine 415V HDPE Bottle


    The main components of the machine. ( ABLB90 )

    Max.size of mold

    530X550mm

    Mold stroke

    180-680mm

    Max.die diameter

    200mm

    Blowing pressure

    0.6mpa

    Air Volume

    0.7 /MIN

    Cooling water pressure

    0.3mpa

    Water consumption

    70 L/MIN

    Size of Machine

    3.8x2.6x3.2m

    Weight of machine

    8ton

    electronic parts

    Name

    Trader

    Micro computer control system

    Japanese MITSUBISHI

    Temperature Controller

    TAIWAN YANHUA PID

    Auxiliary Relay

    OMRON

    contactor

    Schneider from France

    Electric motor

    Three phase 220V or 380V

    Power Source

    TAIWAN MEANWELL

    Transducer

    TAIDA FROM CHINA

    hydraulic parts

    Name

    Trader

    Oil pump

    TAIWAN HIGH-TECH

    Valve

    JAPAN YUKEN

    Oil pump and connection

    JAPAN YUKEN

    Sealed part

    HALLITE

    air control system

    Name

    Trader

    Cylinder

    AIRTAC

    Air Valve

    FESTO

    Our Services

    PAYMENT:

    30% down payment paid at signing this contract by T/T , and the balance of 70% paid before shipment by T/T or irrevocable L/C.


    WARRANTY:


    We warranty the quality of this machine for 12 months ,if there is any problem with the machine ,or any main parts are broken, we will repair it or replace new for free.


    TRAINNING:


    The seller should train two or three operating man for free. (Travel and hotel is by buyer’s expenses.)

    INSTALLATION AND TEST

    The buyer should place the machine to the right position and inform the supplier after the machine reach the buyer’s factory. The seller will send the engineer to test run the machine until it is running in normal state. The buyer will bear his round-trip air tickets, accommodation, and hotel and so on in BUYER’S side. Besides,the buyer will pay 40USD/day/person for technology fee.
