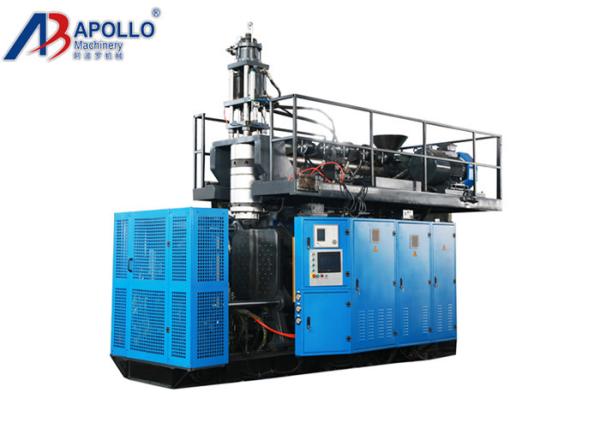

    HDPE 25L 30L 35L Plastic Drum Moulding Machine

    Ask Lasest Price
    Brand Name : APOLLO
    Model Number : ABLD90
    Certification : CE/SGS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20SETS PER MONTH
    Delivery Time : 50DAYS
    • Product Details
    • Company Profile

    HDPE 25L 30L 35L Plastic Drum Moulding Machine

    25L, 30L, 35L, 50L plastic oil yellow drum extrusion automatic blow molding machine in blue


    Production line of blow molding machine
    Product: 50L
    Power supply: 380v 50 Hz Tri-phase
    Output capacity: 1000pcs/day
    Suitable raw material: HDPE

    Model No.: ABLD90(single station single die head)

    This type of blow molding machine ABLD90 can produce bottle, kettle, can, flower pot etc. The machine is especially designed for producing with material PE, PVC, PP and so on.

    Basic installation including

    • Die head: Center-feed die head
    • Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
    • Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
    • Blowing device: with upper blowing type
    • Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
    • Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand.

    Unit price (including one series of spare parts)

    • Unite price (including one series of spare parts for wearing parts)

    Basic parametersSuitable materailHDPE
    Max volume60L
    Capacity1000pcs/day
    SizeLXWXH=5.2x2.9x4.6(M)
    Weight13.5T
    System classSystem detailsParameterRemark
    Plasticizing systemSummaryHigh efficiency and low consumption plasticizing system, variable frequency speed regulation, automatic protection function at low temperature extrusion starting
    Gear boxHard Tooth Surface, High Strength, Low Noise Antiwear Reducer
    Barrel screw

    ∮90mm,L/D=25 38CrMoALA
    High quality nitride steel, gradual mixing, high efficiency and energy saving screw

    The barrel feeding place is available with
    Cooling function

    Plasticizing150Kg/HABS
    Heating zone4Auto heading
    Heating power18KW/H
    Screw motor3 phase induction motor
    Cooling fan4Auto cooling
    Extruction headSummary

    High quality alloy steel with central feeding


    Head number1
    Head centre distance/
    Max. die∮340mm
    Heating zones4 Ceramic heater
    Heating power18KW
    Open and close moldSummaryHigh Strength, High Rigidity, Center Locking, Low Friction Mould Opening and Closing, Mould Shifting Mechanism
    Clamping force320KN
    Mold stroke450~1100mm
    Template sizeWXH: 900x900mm
    Mould thickness range500-100mm
    Electrical control systemSummary


    PLC + touch screen (man-machine interface) standardized extrusion and blow hollow forming machine control system (automatic monitoring, fault alarm, automatic counting, auxiliary function selection)

    Operating interfaceTouch screen operation, fault alarm auto-display
    Action controlXIEHE system from TAIWAN, Programming in Chinese and English
    Electrical protectionElectrical Short Circuit Automatic Protection Function with Current Overload
    Hydraulic systemSummaryMultifunctional Hydraulic Integrated Block, Proportional Control, High Efficiency and Energy Saving
    Oil pump motorServo system
    Oil pumpServo pump SUMITOMO from Switzerland
    Valve partsImported Hydraulic Valve Assembly
    Oil pipeDouble-Layer High Pressure Wear-Resistant Tubing
    System pressure100Kg/cm²
    Cooling waysIndependent water circulation, oil cooler cooling
    Air systemSummaryTaiwanese AIRTAC Pneumatic Component Combination, Reserve One Way Action
    Air pressure0.8Mpa
    Air displacement1.0M3/min
    Soleniod valveAIRTAC from TAIWAN
    Cooling systemSummaryMold, barrel, oil source three independent cooling water lines, non-interference with each other
    Cooling mediumNatural water and groundwater (frozen water is better)
    Water flowing90L/min
    Water pressure0.3MPa
