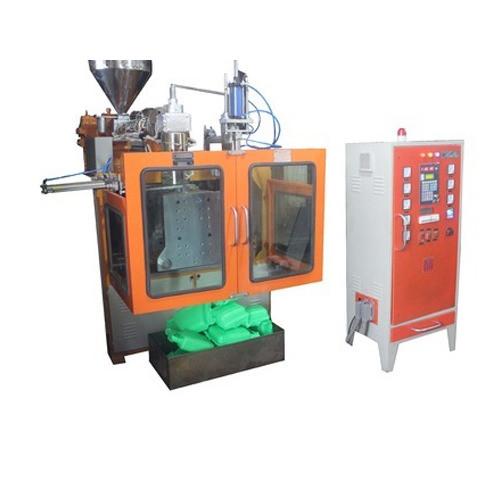

    Hdpe Bottle Jerrycan Blow Molding Machine Plastic Extrusion 75mm

    Ask Lasest Price
    Brand Name : APOLLO
    Certification : CE/SGS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets per month
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    Hdpe Bottle Jerrycan Blow Molding Machine Plastic Extrusion 75mm

    Plastic Jerry Can Extrusion Moulding Making Machine Hdpe Bottle Jerrycan Blow Molding Machine

    1: Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.

    2: Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.

    3: High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.

    4: Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers’ top quality requirement.

    5: Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.

    6: Multiple-way PID controlled temperature heating is precise and stable.


    Clamping system
    Fixed clamping system
    Injection system
    Hardeoed face gear redocer + lmponed freqooncy inverter
    Die system
    Special steel center-feeding die

    Hydraulic system
    All imported hydraulic valve +hydraulic servo control system
    Control system
    Imported PLC + Europe imported complete machine control system (GEFRAN from Italy )

    Product Description

    Max. Product volume8 liter
    Output capacity900-1100pcs/h
    Screw diameter75mm
    Screw L/D ratio24 L/D
    Screw drive power22 KW
    Screw heating capacity7 KW
    No.of heating zone4 zones
    Output of HDPE100KG/H
    Oil pump drive power11 KW
    Clamping force78KN
    Max.size of mold400*450mm
    Mold stroke148-568mm
    Max.die diameter160mm
    Blowing pressure0.6 mpa
    Air Volume0.8 M/MIN
    Cooling water pressure0.3mpa
    Water consumption80 L/MIN
    Size of Machine3.8x2.2x2.8m
    Weight of machine8 ton
