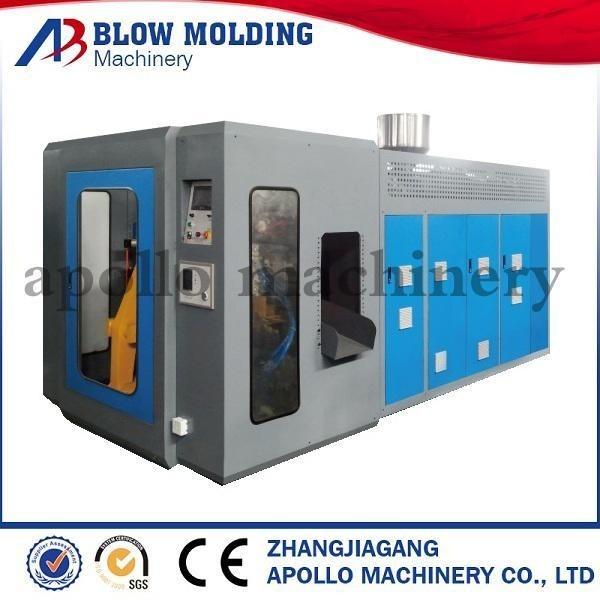

Full Automatic Injection Blow Moulding Machine Single Station Small Plastic Products

    Buy cheap Full Automatic Injection Blow Moulding Machine Single Station Small Plastic Products from wholesalers

    Buy cheap Full Automatic Injection Blow Moulding Machine Single Station Small Plastic Products from wholesalers
    • Buy cheap Full Automatic Injection Blow Moulding Machine Single Station Small Plastic Products from wholesalers

    Full Automatic Injection Blow Moulding Machine Single Station Small Plastic Products

    Ask Lasest Price
    Brand Name : APOLLO
    Certification : CE/SGS
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets per month
    Price : Negotiable
    • Product Details
    • Company Profile

    Full Automatic Injection Blow Moulding Machine Single Station Small Plastic Products

    apollo single station small plastic products full automatic blow molding machine
    • Brand: apollo
    • Code: 8477309000

    Product Description

    Max. Product volume10 liters
    Screw diameter75mm
    Screw L/D ratio24 L/D
    Screw drive power22 KW
    Screw heating capacity6 KW
    No.of heating zone4 zones
    Output of HDPE100KG/H
    Oil pump drive power11 KW
    Clamping force78KN
    Max.size of mold188-600mm
    Mold stroke400 X 450mm
    Max.die diameter180mm
    Blowing pressure0.6 mpa
    Air Volume0.7 M/MIN
    Cooling water pressure0.3mpa
    Water consumption60 L/MIN
    Size of Machine3.6x1.8x2.8m
    Weight of machine6.3 ton
    Quality Full Automatic Injection Blow Moulding Machine Single Station Small Plastic Products for sale
